Key takeaways
- Energy storage BMS PCBA manufacturing is not only SMT assembly; it is a control problem involving sampling, protection logic, power paths and test evidence. - Voltage sampling, current sensing, isolation spacing, MOSFET or relay drive and thermal design must be reviewed during NPI. - Functional testing should verify protection behavior, not only power-on status. - Overseas buyers should ask how production data connects firmware, calibration, serial number and final test result.
Why BMS boards are manufacturing-sensitive

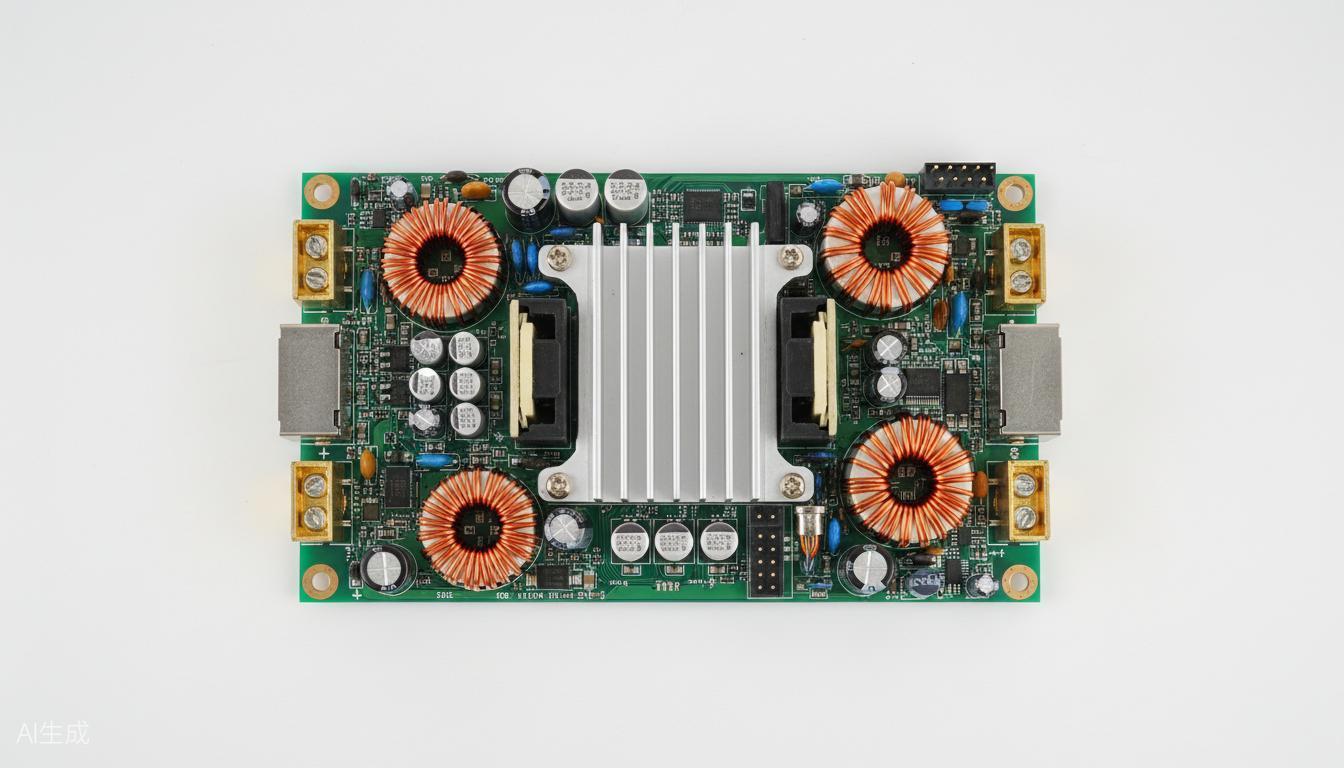

A Battery Management System PCBA monitors and controls battery behavior. In energy storage applications, the board may measure cell voltage, pack voltage, current, temperature, balancing status, charge and discharge state, communication and protection events. Small assembly differences can affect measurement accuracy or long-term reliability. That makes manufacturing control especially important.
Unlike a simple signal board, a BMS PCBA often combines low-level sensing, high-current control, isolation, thermal concerns and firmware logic. If soldering is unstable, if sense resistors are substituted without control, if conformal coating affects connectors, or if firmware version is wrong, the final product can pass basic power-on but fail under real operating conditions. This is why BMS production should be planned as a system validation task.
Sampling accuracy and component control
Voltage and current measurement depend on component selection, layout, solder quality and calibration assumptions. Resistor tolerance, temperature coefficient, amplifier offset, ADC reference stability and connector contact quality can all affect measurement. BOM control is therefore critical. Substituting a current sense resistor or amplifier only by package can change accuracy and thermal behavior.
During NPI, the team should identify measurement-sensitive parts and define substitution rules. These parts may require fixed manufacturer part numbers, customer approval or extra validation. The production test should include values that confirm measurement channels are within acceptable range. If calibration is required, the calibration method and data storage must be controlled.
Protection logic and power device assembly
BMS boards may include MOSFETs, relays, drivers, fuses, TVS devices, optocouplers and isolation components. These parts are often linked to protection logic such as over-voltage, under-voltage, over-current, short-circuit, over-temperature and communication fault handling. Manufacturing must verify that the assembled hardware supports the intended logic.
