ODM DESIGN CASE

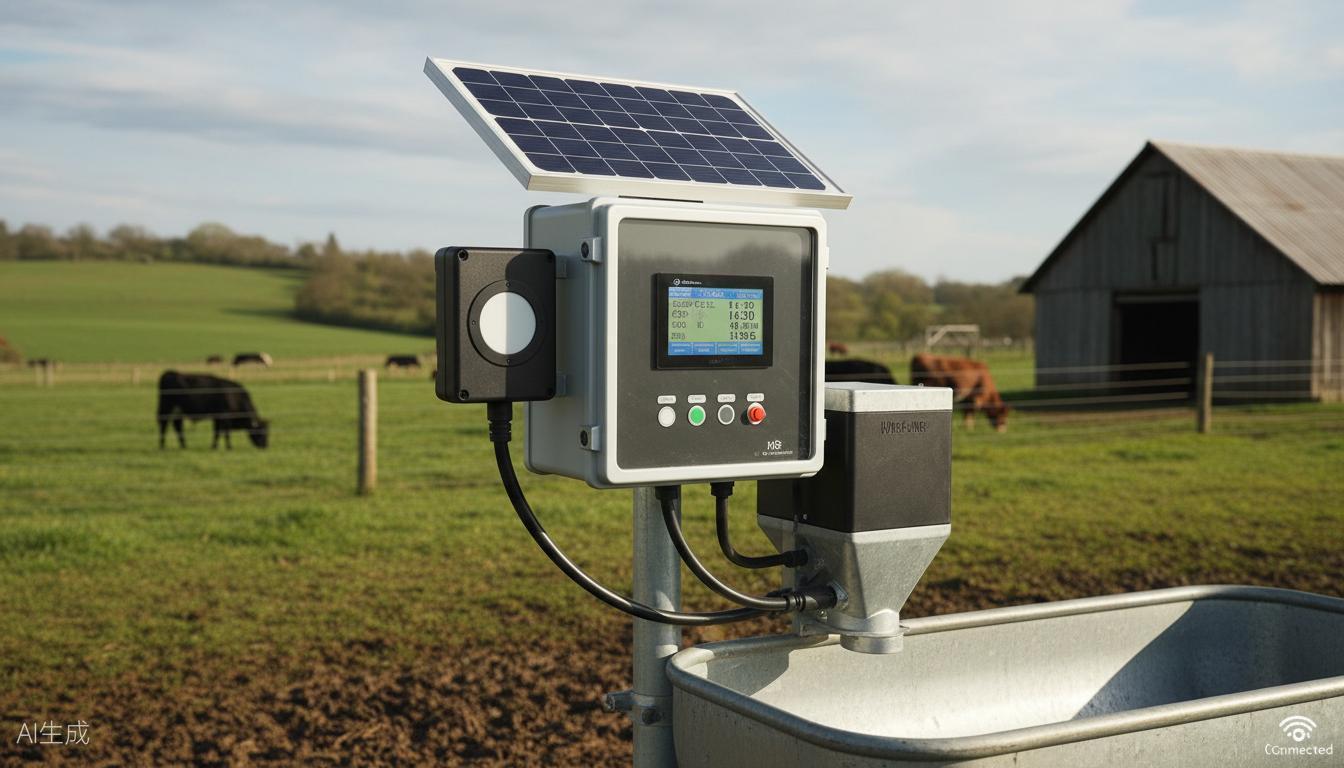

Smart Electronic Feeder Control System ODM Solution
A precision livestock feeding control system supporting 6/8 feeding stations, HDX RFID, food account management, RS485 motor control, solar power, LoRa communication, data recording and device diagnostics.
System Overview
The EF Stage 1 smart electronic feeder control system is one of Keep Best representative ODM cases. It targets precision livestock feeding scenarios, using HDX RFID for individual identification, combined with motor control and communication modules for precise feeding management. The system consists of a control motherboard, RFID module, motor driver, communication module, power management module and sensor interface module.
Functional Modules
HDX RFID Identification
Identification
Uses HDX RFID for individual animal identification with long read range, strong penetration and anti-interference capability.
Motor Control Module
Motor Control
Supports RS485 motor control for precise feeding station control including start/stop, speed and position control.
Solar Power Supply
Solar Power
Solar cell power supply for off-grid outdoor scenarios, with efficient power management for stable low-light operation.
LoRa Communication
LoRa Comm
LoRa master-slave communication for multi-site networking and data collection with long range, low power and flexible networking.
Food Account Management
Food Mgmt
Individual animal food account management recording consumption, timing, remaining feed with data upload and remote management.
Data & Diagnostics
Diagnostics
Local data recording and device diagnostics including anomaly alerts, status monitoring, OTA firmware updates for easy maintenance.
Technical Specifications
Feeding Stations
6 / 8
ID Technology
HDX RFID
Communication
LoRa / RS485
Power Supply
Solar + Battery Backup
Control Interface
RS485 / GPIO
Data Recording
Local + Remote Upload
Protection
IP65
Operating Temperature
-20°C to +60°C
Application Scenarios
Precision Livestock Feeding
Individual feeding management via RFID, automatically adjusting feed amount and timing based on growth stage, weight and health.
Farming Data Collection
Recording individual consumption data and equipment status for farming analytics and decision optimization.
Off-Grid Outdoor Scenarios
Solar-powered for off-grid outdoor scenarios in pastures, grasslands and remote mountain areas.
Multi-Site Networking
LoRa master-slave networking allowing one master to manage multiple slave stations, reducing deployment costs.
FAQ
Demonstrates capabilities in smart control device solution collaboration, multi-module integration, communication protocol development and manufacturing testing, especially in RFID, motor control, solar power and LoRa communication.
Years of experience in industrial control, motor control, sensor control and communication control, familiar with various control algorithms, communication protocols and embedded development.
Full-process capability from product concept to volume production delivery, and professional depth and manufacturing reliability in smart control devices.
Learn More About ODM Design
If your product falls in new energy power electronics, smart control devices or industry-specific systems, contact Keep Best for ODM collaboration.
