Direct Answer

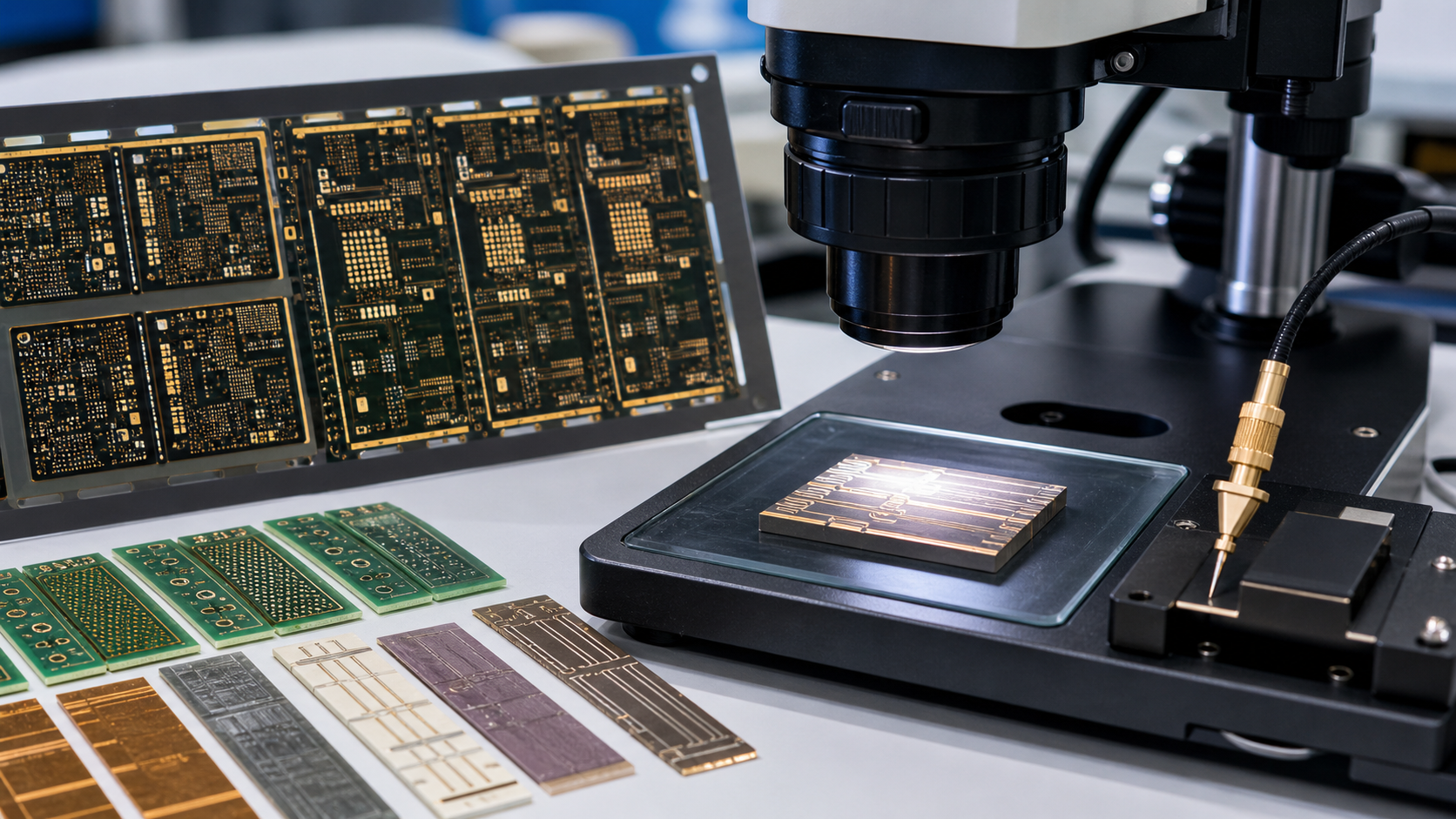

An HDI PCB assembly service should be evaluated by the evidence it can return before production, not by the word HDI in a quotation. Buyers need to define stack-up assumptions, microvia structure, material limits, fine-pitch component risk, SMT assembly constraints, inspection coverage, test requirements and change control before comparing unit price or lead time.
Use this guide when an RFQ involves dense routing, BGA fan-out, microvias, thin dielectrics, controlled impedance or compact electronics where board fabrication choices affect PCBA assembly. It should be reviewed together with PCBA manufacturing services, RFQ submission workflow, DFM engineering review, quality and traceability controls, HDI PCB supplier evidence guide, HDI PCB material selection guide, multilayer PCB assembly checklist, PCBA supplier evidence requirements so the buyer can separate service scope, supplier evidence, DFM risk and release records.
How This Page Differs From Existing HDI Guides
The existing HDI PCB supplier evidence guide focuses on supplier qualification and HDI manufacturing evidence. The existing HDI PCB material selection guide focuses on materials, Tg, CTE, surface finish and stack-up decisions. This page is the assembly-service buyer guide: it connects HDI board assumptions to SMT process window, inspection coverage, cost trade-offs and RFQ evidence.
RFQ Inputs To Define Before Quotation
- PCB design package: Gerber or ODB++, drill files, stack-up, controlled impedance notes, copper weight, surface finish and panel constraints.
- Assembly data: BOM, AVL, placement file, centroid file, assembly drawing, polarity notes, BGA/QFN/fine-pitch component list and approved substitutes.
- HDI constraints: blind or buried vias, stacked or staggered microvias, minimum line and space, dielectric thickness, via fill requirements and reliability expectations.
- Test and inspection scope: AOI, SPI, X-ray, ICT, FCT, programming, coating or final functional evidence where the product risk requires it.
- Commercial assumptions: prototype or production volume, packaging, shipment region, target build window and material substitution approval path.
Assembly Risks Buyers Should Compare
HDI projects often fail at the interface between PCB fabrication and assembly. A supplier may be able to quote a dense board, but the PCBA build can still face warpage, fine-pitch bridging, BGA voiding, insufficient X-ray visibility, rework limits, cleaning risk or inconsistent panel support. The RFQ should ask how these risks are handled before the first build.
The most useful supplier response connects DFM comments, stencil assumptions, solder paste selection, reflow profile, panel support, first article inspection and batch release records. If the response only lists unit price, lead time and generic assembly capability, the buyer does not yet have enough evidence.
Cost And Lead-Time Drivers
- Microvia and stack-up complexity can change PCB fabrication cost before assembly even begins.
- Fine-pitch BGA, QFN, 0201 or dense connector areas can increase stencil, placement, AOI and X-ray review effort.
- Controlled impedance, special finish, laminate availability and approved material alternates can affect sourcing time.
- Prototype builds may need more engineering review time than the apparent assembly quantity suggests.
- Rework limits, test fixtures and evidence packages should be priced into the build instead of discovered after failure.
Evidence To Request From A Supplier
- DFM and assembly-readiness notes that identify stack-up, panelization, solder mask, BGA, fine-pitch and rework risks.
- Inspection plan showing where AOI, SPI, X-ray, microscope inspection, ICT, FCT or functional test records will be used.
- First article release records with photos or measurements for critical locations when the project risk justifies them.
- Material and substitute approval trail for laminate, finish, components and equivalent BOM items.
- Batch traceability summary connecting lot, inspection result, test result, rework history and shipment release.
Supplier Questions For The RFQ
- Which HDI assumptions must be confirmed before assembly: stack-up, microvia structure, impedance, surface finish or panel format?
- Which components create the narrowest SMT process window, and how will that be controlled?
- What evidence will be returned with prototype, first article and production lots?
- What substitutions are allowed, and who approves material or BOM alternatives?
- What happens if X-ray, AOI, ICT, FCT or functional test results disagree?
Practical Recommendation
Shortlist HDI PCB assembly service providers by their evidence package. A controlled offer should make it clear what the buyer must submit, what the supplier will review, which risks remain open, which records will be returned and which assumptions affect cost or lead time. This keeps sourcing decisions tied to manufacturing reality instead of a short keyword in a supplier profile.
FAQ
Is HDI PCB assembly only a PCB fabrication issue?
No. HDI stack-up, microvias, fine lines, surface finish and panel stability can directly affect SMT assembly, BGA reliability, inspection coverage and rework limits.
What should buyers send first?
Send PCB fabrication data, BOM, AVL, placement data, assembly drawings, test requirements, quantity, target schedule and any reliability or regulatory constraints that affect the build.
Can a supplier quote without DFM review?
A quick budgetary quote is possible, but production approval should wait until DFM, assembly risk, test coverage and evidence requirements are reviewed.
Does the lowest HDI assembly quote usually win?
Not by itself. A lower unit price can hide material assumptions, missing inspection evidence, weak rework rules or delayed test fixture work.
