Direct Answer
Controlled impedance PCBs should be quoted and approved with more than a line item that says "impedance control required." Buyers need to specify target impedance, tolerance, stackup assumptions, controlled nets, material expectations, coupon strategy, test method, reporting format and acceptance responsibility before comparing suppliers. Otherwise a low quote may hide material substitutions, trace-width changes, missing coupons, unclear TDR evidence or late design feedback.
This guide is written for buyers comparing PCB and PCBA partners for high-speed digital, RF-adjacent, imaging, industrial control or connected device projects. Use it with PCBA manufacturing services, quality and traceability controls, DFM engineering review, multilayer PCB manufacturing material review, PCB assembly process controls, PCBA supplier evidence checklist and the broader RFQ submission path before releasing a controlled impedance build.
Why Controlled Impedance Changes The RFQ
Impedance is not controlled by a single fabrication setting. It is affected by stackup, dielectric thickness, dielectric constant assumptions, copper weight, finished copper thickness, trace width, trace spacing, reference planes, solder mask, plating and etching variation. A supplier may need to adjust trace geometry to fit its controlled process window. That adjustment should be reviewed before production, not discovered after the board is already built.
For a buyer, the practical question is not only whether a supplier can say "yes" to controlled impedance. The useful question is whether the supplier can show how it will review the design, confirm stackup, protect controlled nets, test representative coupons and return evidence tied to the correct PCB revision and lot.
Inputs Buyers Should Provide
- Target impedance values and tolerances for each controlled net or net class.
- Whether each structure is single-ended, differential, microstrip, stripline, coplanar or another defined geometry.
- Stackup intent, material family, copper weight, finished board thickness and any restricted substitutions.
- Gerber or ODB++ data, drill files, IPC netlist where applicable, fabrication drawing and controlled impedance notes.
- Whether the supplier may adjust trace width or spacing after engineering review, and how buyer approval will be handled.
- Coupon requirements, test method, sample quantity, report format and acceptance evidence expected before shipment.
Supplier Evidence To Request
Stackup and material confirmation
Ask the supplier to return the proposed stackup before release. It should align with the design intent and material availability. If an alternate laminate or prepreg is proposed, the supplier should state the assumption and request approval. This evidence connects directly to multilayer PCB manufacturing material review because impedance performance depends on the board construction, not only on a headline material name.
Engineering feedback before production
The DFM response should identify controlled nets, required geometry changes, coupon placement, panelization limits, solder mask assumptions and any conflict between impedance targets and manufacturing capability. Tie this step to DFM engineering review so the quote does not move straight from files to production without engineering review.
Process controls during fabrication
Ask what controls will be used for imaging, etching, lamination, copper plating and final inspection. The answer does not need to expose proprietary process details, but it should be specific enough for buyer review. If the same partner also handles assembly, align the fabrication evidence with PCB assembly process controls so downstream PCBA risks are not separated from PCB build assumptions.

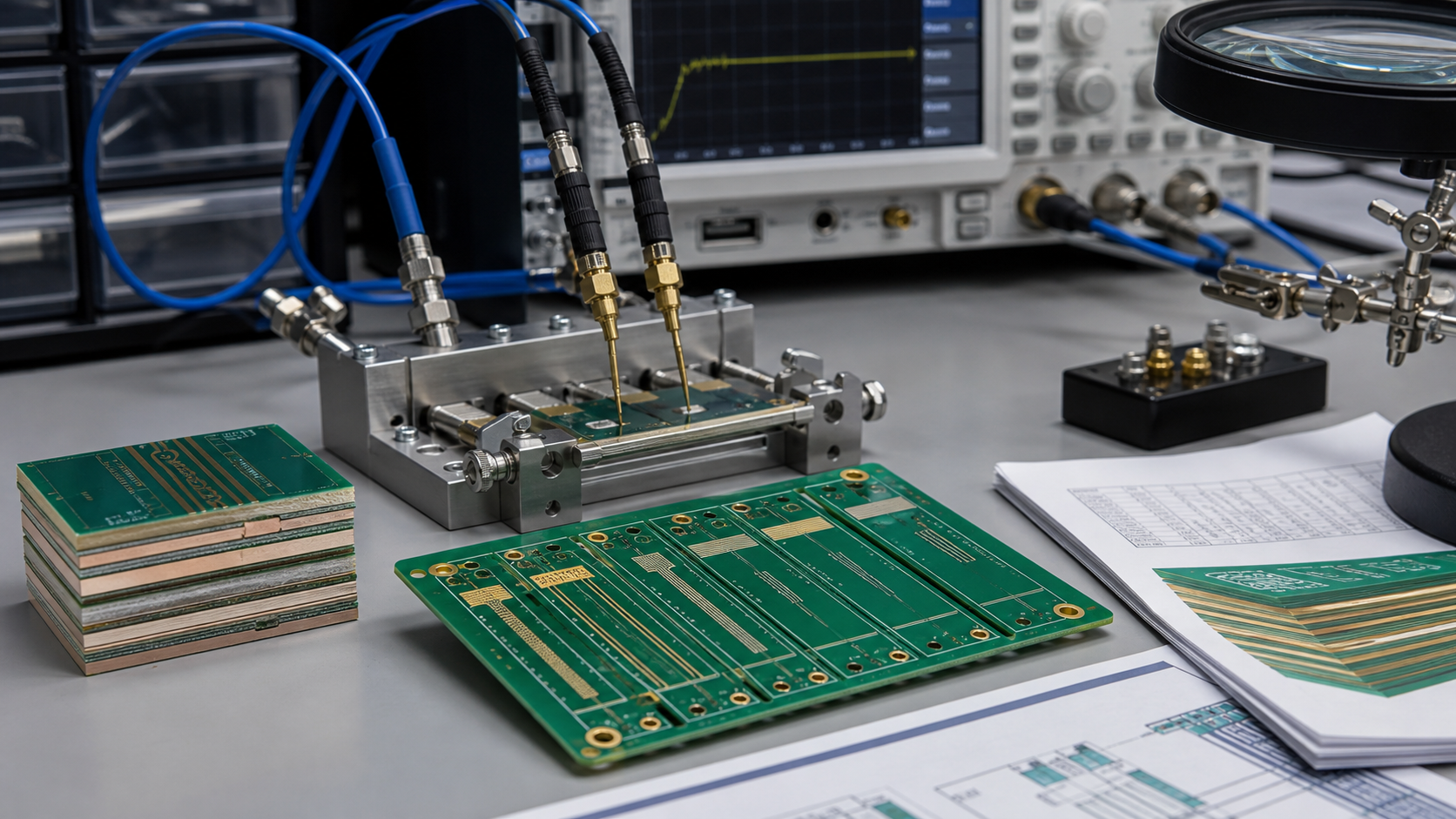

Coupon and test record
A controlled impedance quote should state whether coupons are included, where they will be placed, how they represent the production panel and which records will be returned. The buyer should expect the report to identify target values, measured values, tolerance, board revision, lot or panel reference and test date.
Change control
If the supplier changes laminate, copper, stackup, routing compensation, coupon design or test method, the buyer should require approval before the build moves forward. This is especially important when controlled impedance PCBs are used in higher-speed or RF-adjacent systems such as products discussed in microwave PCB manufacturer FAQ.
Common Defects And Decision Risks
| Risk area | What can go wrong | Buyer control | |---|---|---| | Incomplete callouts | Supplier cannot tell which traces are controlled | Mark controlled nets and target values clearly | | Stackup mismatch | Material or dielectric thickness differs from design assumptions | Require proposed stackup approval before release | | Etch variation | Finished trace geometry moves impedance out of tolerance | Ask for process capability and coupon evidence | | Missing coupon plan | Test evidence does not represent the production panel | Define coupon method and report format in the RFQ | | Late geometry changes | Supplier adjusts traces without buyer review | Require written approval for trace-width or spacing changes | | Unclear acceptance | Supplier and buyer use different tolerance expectations | State tolerance and pass/fail evidence before ordering |
RFQ Comparison Checklist
- Does the quotation include controlled impedance engineering review or is it only a fabrication price?
- Does the supplier confirm stackup, material assumptions and allowed substitutions?
- Does the supplier identify whether it needs to adjust trace geometry for its process?
- Does the RFQ specify coupon testing and returned evidence?
- Are impedance reports tied to revision, lot and test date?
- Is there a clear escalation path if measured results are outside tolerance?
- Are PCB fabrication assumptions aligned with assembly, inspection and final PCBA release requirements?
What Buyers Should Not Claim Without Evidence
Do not treat a keyword such as controlled impedance, RF, high-speed, automotive, medical or industrial as proof of a factory capability. If the project needs a specific standard, certification scope, tolerance, test method, material brand, process capability or product-grade evidence, request records and keep the assumption visible. Keywords help define search intent; they do not confirm supplier capability.
For sourcing teams, the most useful next step is to send a controlled RFQ package through RFQ submission path and request an evidence package aligned with PCBA supplier evidence checklist. That makes the comparison about engineering control and acceptance evidence, not only unit price.
FAQ
What should a controlled impedance PCB RFQ include?
It should include target impedance values, tolerances, controlled nets, stackup intent, material assumptions, fabrication data, coupon requirements, test method, report format and approval rules for supplier geometry changes.
Can a PCB supplier change trace width for impedance control?
A supplier may recommend trace-width or spacing changes to match its manufacturing process, but the buyer should require review and written approval before production release.
Why are coupons important for controlled impedance PCBs?
Coupons provide a practical way to test representative structures from the production panel and create measured evidence tied to the build lot and revision.
Should controlled impedance be handled before PCBA assembly?
Yes. Impedance requirements start with PCB fabrication assumptions, but the final buyer decision should connect fabrication evidence with assembly, test and release controls.
